HIGH PERFORMANCE Knife Gate Valve – LUG / WAFER SERIES

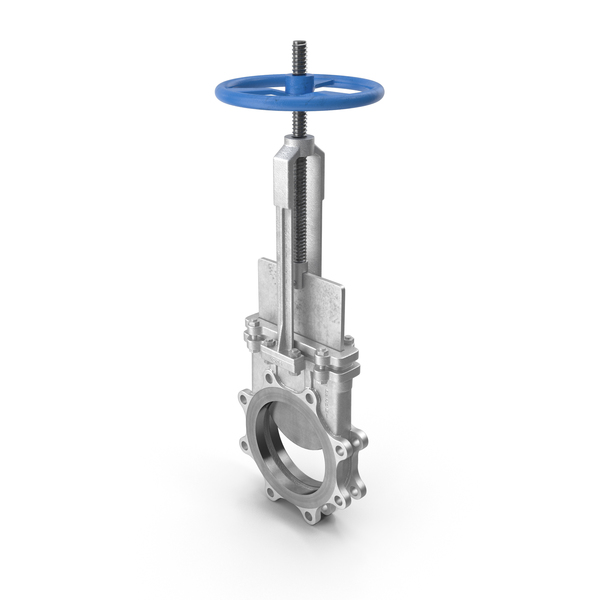

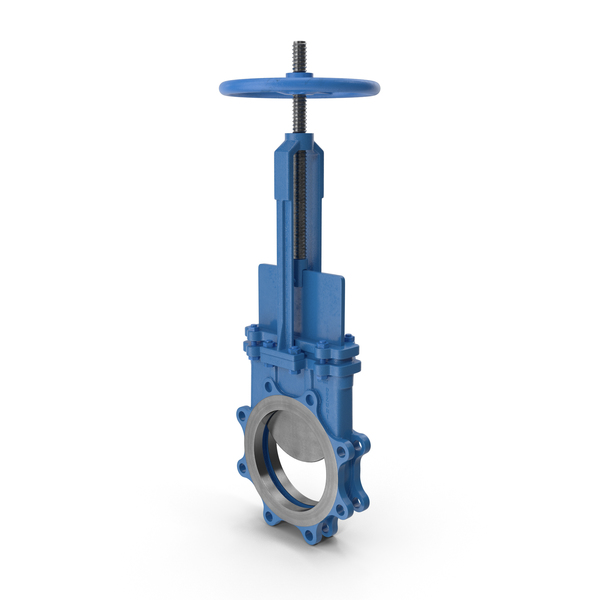

OTOM Knife Gate Valves are a high-performance solution to your industrial need. Our knife gate valves are available in stainless steel, carbon steel, ductile iron and cast iron material. OTOM KGV are sizes are from 2″ up to 36″ and beyond for custom fabrications such as extended knife gate valve stems and hand wheels.

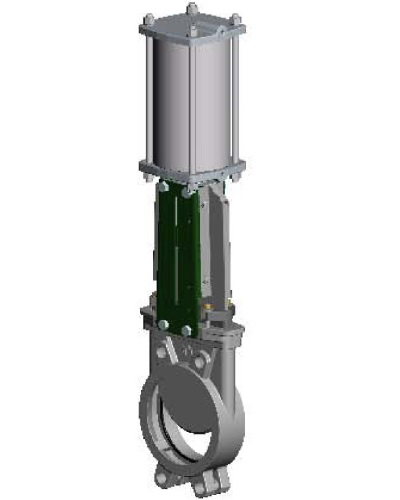

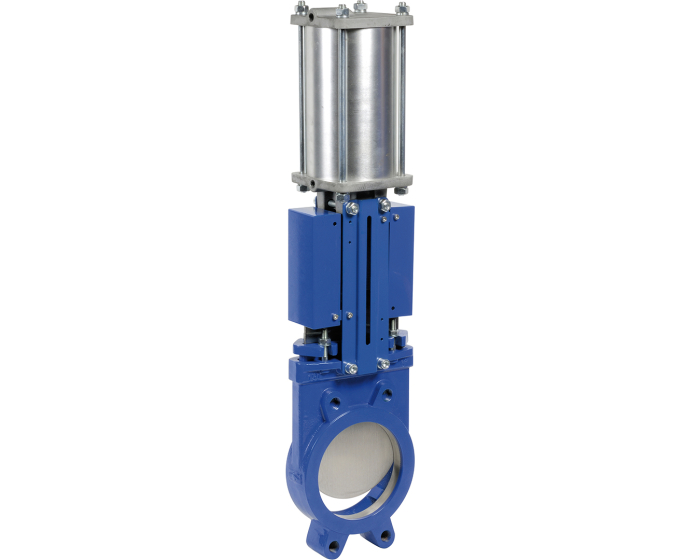

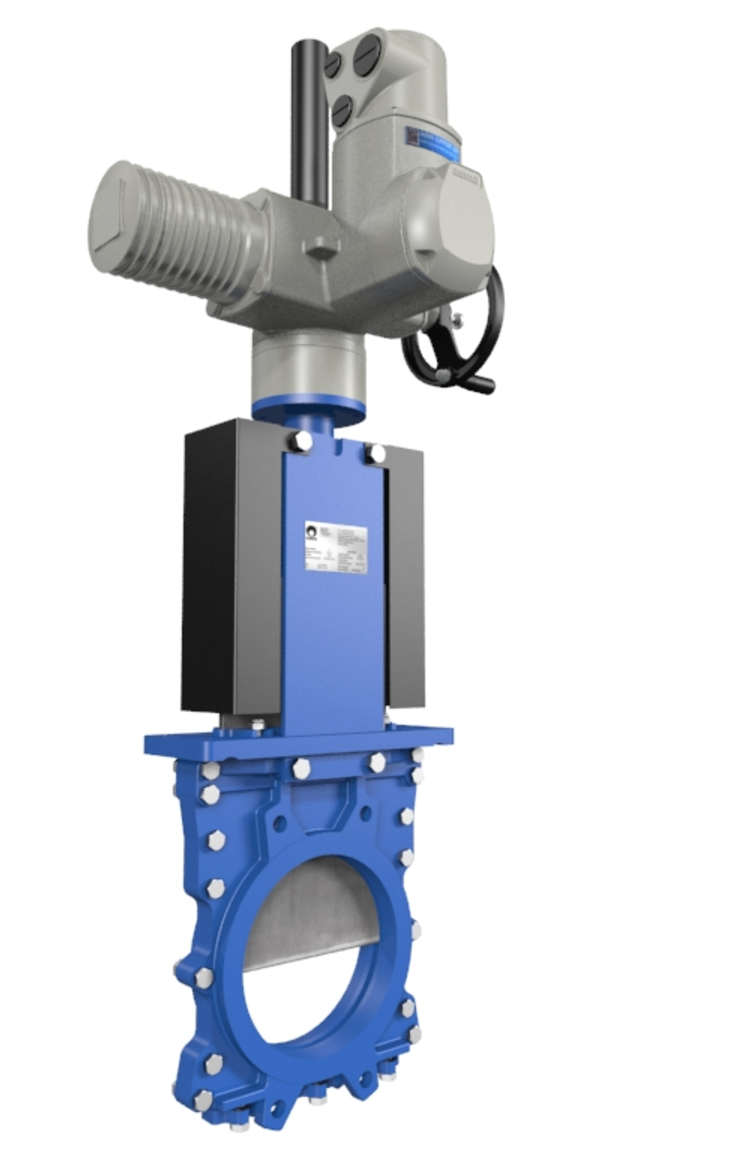

Valves can be also be automated with pneumatic, hydraulic or electric actuator.
All knife gate valves are made from a heavy duty body design and are designed for: oil and gas, paper/pulp, waste water, mining, power, food and beverage, chemical, industry. If there is a valve you have question on, or if you do not see a valve that meets your specifications, please feel free to contact our friendly sales experts for immediate assistance.

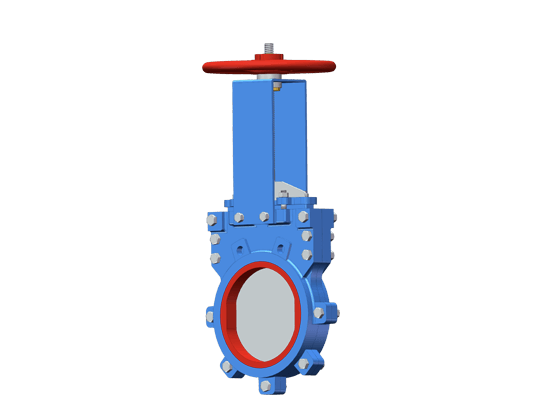

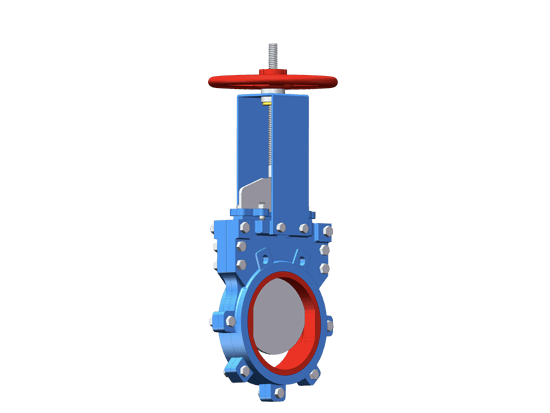

Bidirectional Polyurethane Lined Knife Gate Valve – Series 746HP
- Size Range
NPS 2 to 24 | DN 50 – 600 - Body Style
Single Piece | Wafer - Packing Maximum Temperature
PTFE Impreganted Synthetic Fiber + Quad Seal | 392°F / 200°C - Body Materials
Ductile Iron - Gate Materials
304, 316, 317 Stainless Steel, SAF 2507 Duplex, SAF 2205 Duplex, 17-4PH Stainless Steel, Hastelloy® C, Monel®, Titanium - Testing Standard
MSS SP-151 - Flange Drilling
ASME B16.5 CL150, AS Table D & E, DIN-10 & 16, SANS T1000/3, SANS T1600/3 - Maximum Allowable Operating Pressure
150 psi | 10 bar
232 psi | 16 bar - Liner Maximum Temprature
Polyrethane: -20°F to 194°F | -29°C to 90°C - Actuator Options
Handwheel, Bevel Gear, Lever, Pneumatic, Hydraulic, Electric - Stem Materials
304, 316 Stainless Steel - Design Standard
Manufacturer Standard - Face To Face
MSS SP-81 - Applications
Wastewater, Mining, Power, Chemical & Petrochemical
